Profile Analysis Tensiometers
Advanced instruments for surface and interfacial characterization.
Profile Analysis Tensiometer

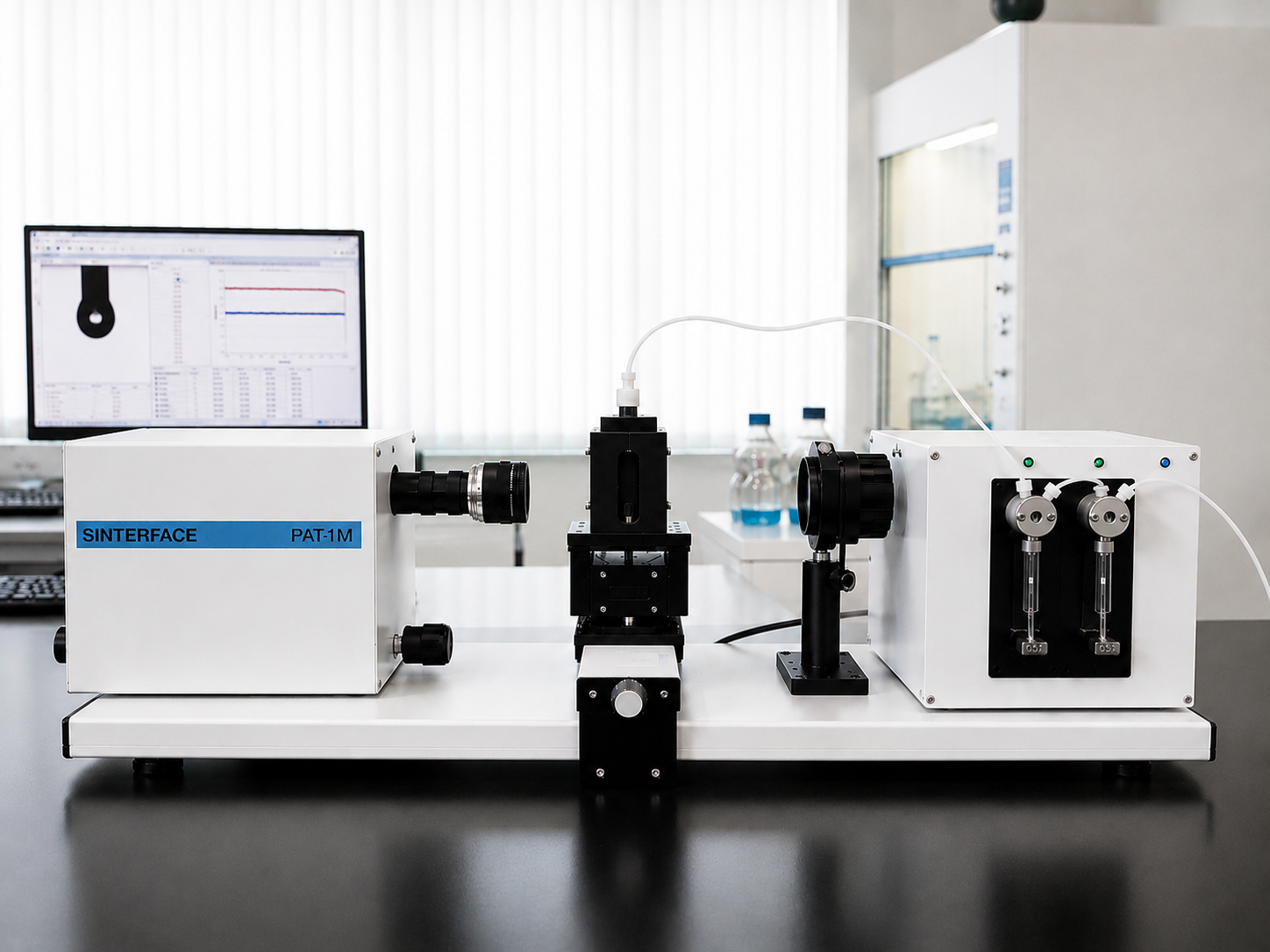

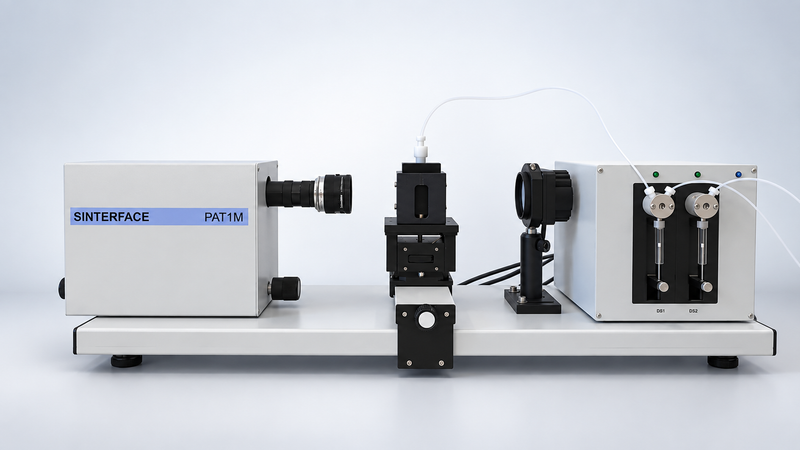

PAT-1M
Precision at every interface.
A modular platform for advanced surface and interfacial characterization, combining precise image analysis, flexible experimental control and powerful measurement capabilities.
0.01 mN/m
Surface and interfacial tension resolution
1–2000 mN/m
Measurement range
Up to 100 Hz
High-frequency analysis with ODBA-1M

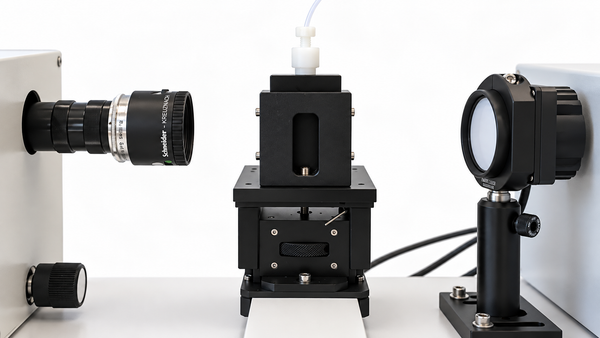

The PAT-1M platform
One instrument. A complete view of the interface.
The PAT-1M combines precise optical analysis, controlled dosing and modular experimental capabilities in one flexible platform.
From surface and interfacial tension to contact angle measurements and advanced interfacial rheology, the system adapts to demanding research and industrial applications.
Capabilities
One platform. Multiple perspectives.
Explore the core measurement capabilities and modular possibilities of the PAT-1M.
Analyze liquid-gas and liquid-liquid interfaces through precise drop and bubble shape evaluation. The PAT-1M supports reliable static and dynamic measurements across a broad range of experimental conditions.
Characterize wettability, adhesion and energetic surface properties using static and dynamic contact angle methods with precise optical contour analysis.
Investigate dilational elasticity, interfacial viscosity and relaxation processes through controlled drop and bubble oscillations.
Extend the PAT-1M with specialized modules for high-frequency oscillations, capillary pressure measurements, direct drop and bubble interactions and fluid-dynamic experiments.
Control dosing, image acquisition, drop and bubble volume, oscillation parameters and data evaluation through one integrated software environment.
Performance
Precision you can quantify.
Every part of the PAT-1M platform is designed to transform complex interfacial behavior into clear, reproducible measurement data.
0.01mN/m
High-resolution tension analysis
Precisely resolve subtle changes in surface and interfacial tension.
1–2000mN/m
Broad measurement range
Analyze a wide spectrum of liquid-gas and liquid-liquid interfaces.
1°–179°
Contact angle range
Characterize wetting behavior across nearly the full angular range.
100Hz
High-frequency oscillations
Extend interfacial rheology measurements with the ODBA-1M module.
Values may depend on configuration, measurement mode and optional modules.
Measurement principle
From image to insight.
The PAT-1M captures the contour of a drop or bubble with high optical precision. Advanced evaluation algorithms transform the recorded geometry into quantitative information about surface tension, interfacial tension, contact angle and dynamic interface behavior.
Optical acquisition
High-resolution imaging
Evaluation
Young-Laplace analysis
Output
Quantitative interface data
Go deeper
Scientific Library
Modular platform
Expand the possibilities.
Configure the PAT-1M around your research. Specialized modules extend the platform from high-frequency interfacial rheology to pressure analysis, direct interface interactions and fluid-dynamic experiments.
Oscillating Drop and Bubble Analyzer
ODBA-1M
Extend the PAT-1M for high-frequency interfacial rheology measurements with controlled drop and bubble oscillations up to 100 Hz.
Learn more
Differential Pressure Analyzer
DPA-1M
Measure capillary pressure and investigate interfaces in systems with very low density differences under precisely controlled conditions.
Learn more
Drop and Bubble Micromanipulation Module
DBMM-1M
Study direct interactions between drops, bubbles and interfaces with precise positioning and controlled approach experiments.
Learn more
Surface Oscillation Accessory
SOA
Perform controlled oscillation experiments for advanced analysis of dynamic and viscoelastic interface behavior.
Learn more
Coaxial Capillary System
CCS
Generate and control drops and bubbles through a coaxial capillary arrangement for specialized interface experiments.
Learn more
Contact Angle Measurement
CA-1M
The CA-1M combines high-resolution optical imaging with precision mechanics to determine static and dynamic contact angles on solid surfaces.
Learn morePAT-1M System Configurator
Build a PAT-1M around your research.
Combine the PAT-1M with compatible dosing configurations, measurement cells, specialized modules and accessories. The configurator guides you through the available options and prepares a complete quotation request.
Compatible modules and accessories
Automatic compatibility checks
Complete configuration summary
ODBA-1M
High-frequency rheology
DPA-1M
Capillary pressure
DBMM-1M
Interface interactions
Dual Dosing
Extended dosing
CA-1M
Contact-Angle...
Modular system
Select modules, options and accessories individually.
Applications
Built for complex interfaces.
The PAT-1M supports advanced interface characterization across research, development and quality control environments.
Scientific publications
Thousands
Publications and scientific references related to interface characterization.
Referenced throughout interface science.
Explore peer-reviewed research related to profile analysis tensiometry, interfacial rheology, wetting and advanced interface characterization.
Verified SINTERFACE instrument use will be clearly distinguished from recommended scientific literature.
Technical information
Detailed when you need it.
Explore measurement capabilities, system configurations and technical specifications of the PAT-1M platform.
Surface and interfacial tension
Static and dynamic contact angle
Surface free energy
Dilational elasticity and viscosity
Relaxation experiments
Drop and bubble oscillations
Capillary pressure measurements with DPA-1M
High-frequency rheology with ODBA-1M
Direct drop and bubble interactions with DBMM-1M
Surface and interfacial tension
- Measurement range
- 1–2000 mN/m
- Resolution
- 0.01 mN/m
Contact angle
- Measurement range
- 1°–179°
- Resolution
- 0.2°
Temperature
- Temperature cell
- 10–100 °C
Imaging
- Camera
- USB 3.0 CMOS camera
- Illumination
- Integrated LED lighting
Online calculation of tension and contact angle
Automatic drop and bubble contour detection
Constant volume and constant area control
Controlled oscillation experiments
Fourier analysis of relaxation experiments
Integrated dosing and image acquisition
Surface free energy evaluation
Integrated automatic dosing system
Optional second dosing unit
Manual XYZ positioning system
Temperature-controlled measurement cell
High-speed camera integration
Compatible with specialized PAT modules
- Connection
- USB 3.0
- Operating environment
- Laboratory and industrial research environments
- Software
- SINTERFACE PAT measurement and analysis software
Specifications may vary depending on configuration, software version and optional modules.
Downloads
Documentation at a glance.
Access product information, technical documentation and supporting materials for the PAT-1M.
PAT-1M Product Datasheet
Overview of measurement capabilities, technical specifications and available configurations.
PDF•2.4 MB•English
Download
PAT-1M Product Brochure
Explore the complete PAT-1M, compatible modules and measurement methods.
PDF•4.8 MB•English
Download
Additional manuals and software downloads are available through the SINTERFACE customer portal.
Visit download centerPAT-1M
Ready to explore your interface?
Talk to our specialists about your application, measurement requirements and the right PAT-1M configuration for your research.
Application consultationConfiguration supportGlobal technical assistance
