Drop and Bubble Interaction Module
DBMM-1M
Direct interaction analysis for drops and bubbles.
The DBMM-1M extends the PAT-1M with controlled interaction experiments between drops, bubbles and mixed drop–bubble systems. It enables direct observation of film formation, deformation and coalescence while combining precise distance control with capillary pressure measurements.
100 µm–1 mm+
Drop and bubble size range
1–100000 s
Dynamic tension time range
PAT-1M
Compatible platform
The DBMM-1M module
Controlled interaction experiments for drops, bubbles and thin liquid films.
The DBMM-1M extends the PAT-1M with direct interaction measurements between two drops, two bubbles or mixed drop–bubble systems. By precisely controlling the distance between both interfaces, the module enables detailed observation of film formation, deformation and coalescence.
In addition to direct interaction studies, the system can measure dynamic surface and interfacial tension using capillary pressure. External perturbations can also be applied to investigate the stability of liquid films under defined experimental conditions.
Measurement capabilities
Advanced oscillating drop and bubble analysis.
Explore the experimental capabilities of the DBMM-1M.
Investigate the interaction between two pendant drops under precisely controlled separation distances to study thin film formation and coalescence processes.
Perform controlled interaction experiments between buoyant bubbles to analyze dynamic interfacial behavior and film stability.
Combine pendant drops and buoyant bubbles within one experiment to investigate heterogeneous liquid–gas interface interactions.
Observe the formation, drainage and rupture of liquid films prior to coalescence under well-defined experimental conditions.
Apply external deformation to interacting interfaces for advanced investigations of film mechanics and interfacial stability.
Measure dynamic surface and interfacial tension simultaneously using direct capillary pressure measurement within the PAT-1M platform.
Performance
Technical performance at a glance.
Key operating parameters and measurement capabilities of the DBMM-1M.
3
Interaction modes
Investigate drop–drop, bubble–bubble and drop–bubble interactions within a single experimental platform.
Control-led
Interface separation
Precisely adjust the distance between interacting interfaces to study film formation and coalescence processes.
Real-time
Optical observation
Continuously monitor interface deformation, film drainage and coalescence using the integrated PAT-1M imaging system.
PAT-1M
Integrated platform
Fully integrated into the PAT-1M, combining optical imaging, automated positioning and capillary pressure analysis.
Values may depend on configuration, measurement mode and optional modules.
Measurement principle
Understanding interfacial interactions in real time.

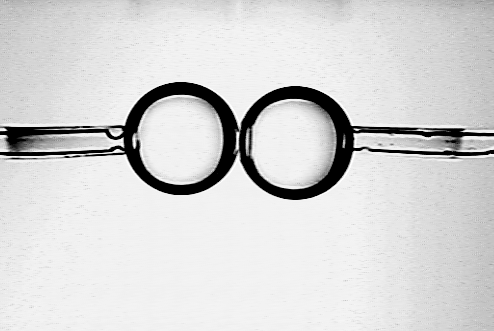

The DBMM-1M enables controlled interaction experiments between two drops, two bubbles or mixed drop–bubble systems. By precisely adjusting the separation distance between the interfaces, the system allows direct observation of film formation, drainage, deformation and coalescence while simultaneously monitoring the corresponding interfacial properties.
Interaction control
Precise interface positioning
Experimental modes
Drops, bubbles & mixed systems
Scientific output
Film stability & coalescence
Compatible instrument
Designed exclusively for the PAT-1M platform.
The DBMM-1M is a dedicated expansion module for the PAT-1M Profile Analysis Tensiometer. It combines optical imaging, automated positioning and direct capillary pressure measurements to investigate interactions between drops, bubbles and mixed liquid–gas systems within a single modular research platform.
Applications
Advancing research on interacting interfaces.
The DBMM-1M enables controlled studies of interacting drops, bubbles and liquid films across a wide range of scientific and industrial applications. It provides valuable insight into coalescence mechanisms, film stability and dynamic interfacial behavior.
Scientific publications
Research
Publications and scientific references related to interface characterization.
Supporting advanced interface interaction studies.
The DBMM-1M has been applied in studies investigating drop and bubble interactions, thin liquid films, coalescence mechanisms and dynamic interfacial phenomena. Explore scientific publications using the DBMM-1M and related interaction methods.
Our publication database identifies verified studies performed with SINTERFACE instruments.
Technical information
Detailed performance and system specifications.
Explore the measurement capabilities, operating modes, hardware configuration and technical specifications of the DBMM-1M module.
Drop–drop interaction measurements
Bubble–bubble interaction measurements
Drop–bubble interaction measurements
Dynamic surface tension
Dynamic interfacial tension
Thin liquid film investigations
Coalescence studies
Automatic drop volume and area control
Surface and interfacial tension
- Measurement range
- 1–1000 mN/m
- Resolution
- ±0.1 mN/m
Interaction experiments
- Drop / bubble size
- 100 µm – 1 mm or larger
- Dynamic time range
- 1–100000 s
Optics and imaging
- Optical platform
- PAT-1M
- Standard image acquisition
- 25 images/s at 1280 × 1024 px
- High-speed image acquisition
- 100 images/s at 640 × 480 px
Two pressure chambers
Two precision pressure sensors
Piezo pistons
Capillary system
Syringe-pump dosing system
Liquid reservoir
Control valve
Electronic control unit
Internal connection to the PAT-1M
Real-time pressure acquisition
Real-time surface and interfacial tension calculation

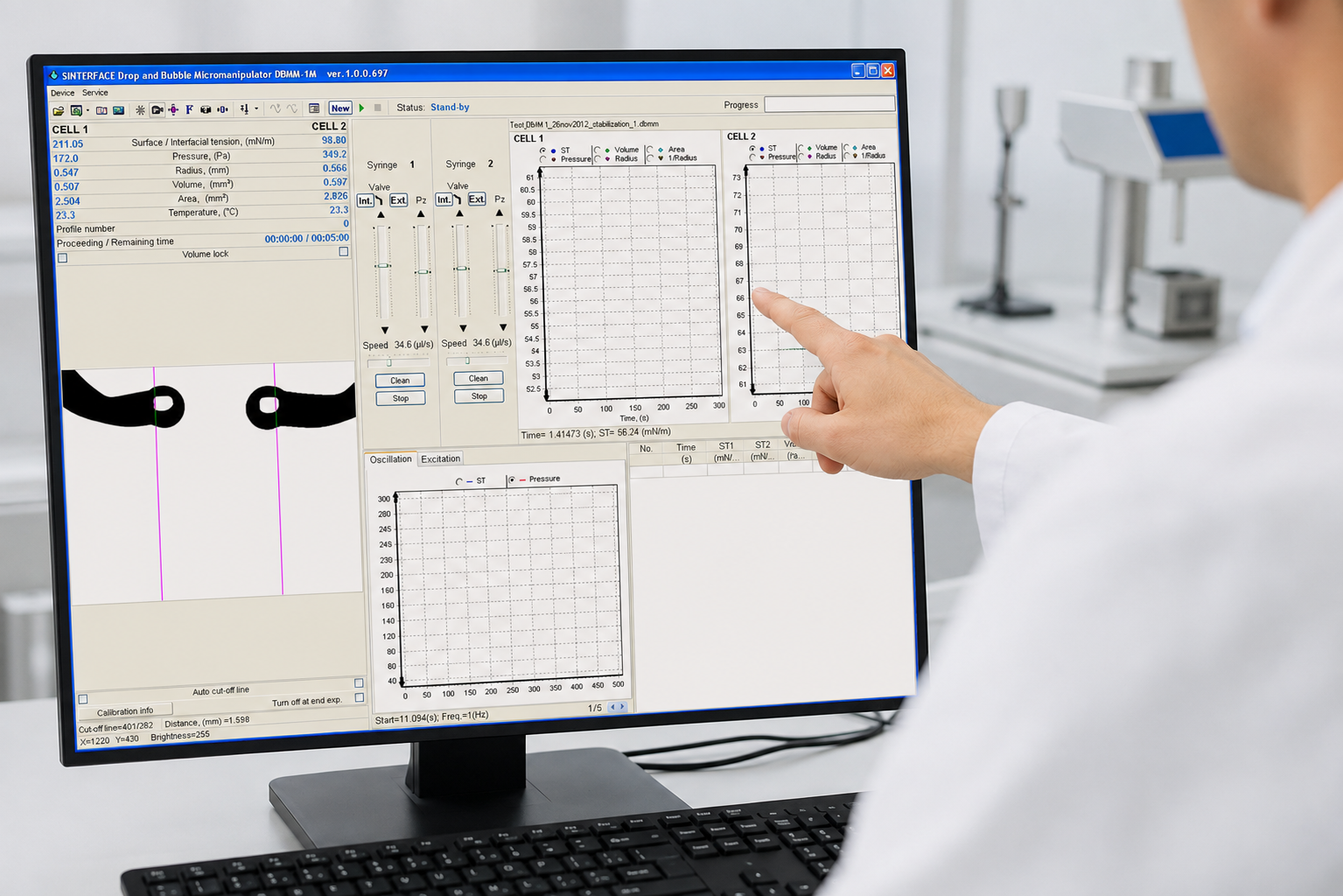

Drop and bubble image monitoring
Pressure sensor calibration
Camera calibration and focusing
Automatic drop volume and area control
Programmable experiment timelines
Experimental data export
Dimensions
- Electronic unit
- 300 × 280 × 100 mm
- Measurement unit
- 200 × 110 × 112 mm
System data
- Weight
- 6 kg
- Power supply
- External 100–240 VAC to 24 VDC
- Power consumption
- 55 W
- Compatible platform
- PAT-1M
Special stainless steel capillaries
Specifications may vary depending on configuration, software version and optional modules.
