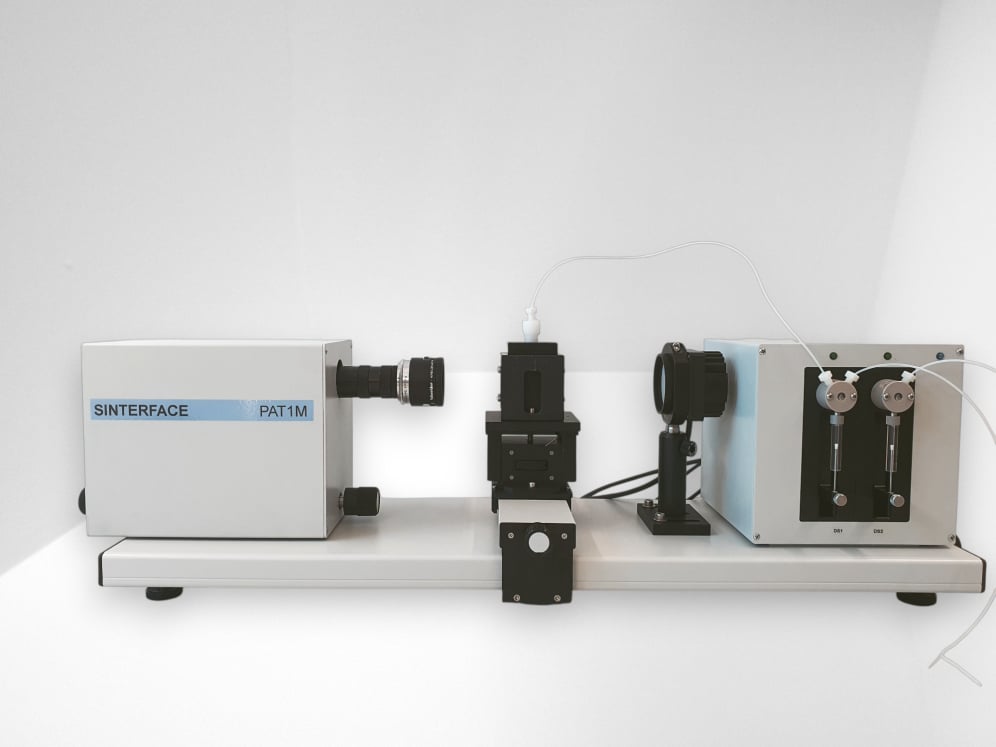

PAT-1M: THE MODULAR STANDARD
High end full automatic profile analysis instrument with modular extensions for different applications based on the profile analysis.
Technical Specifications →

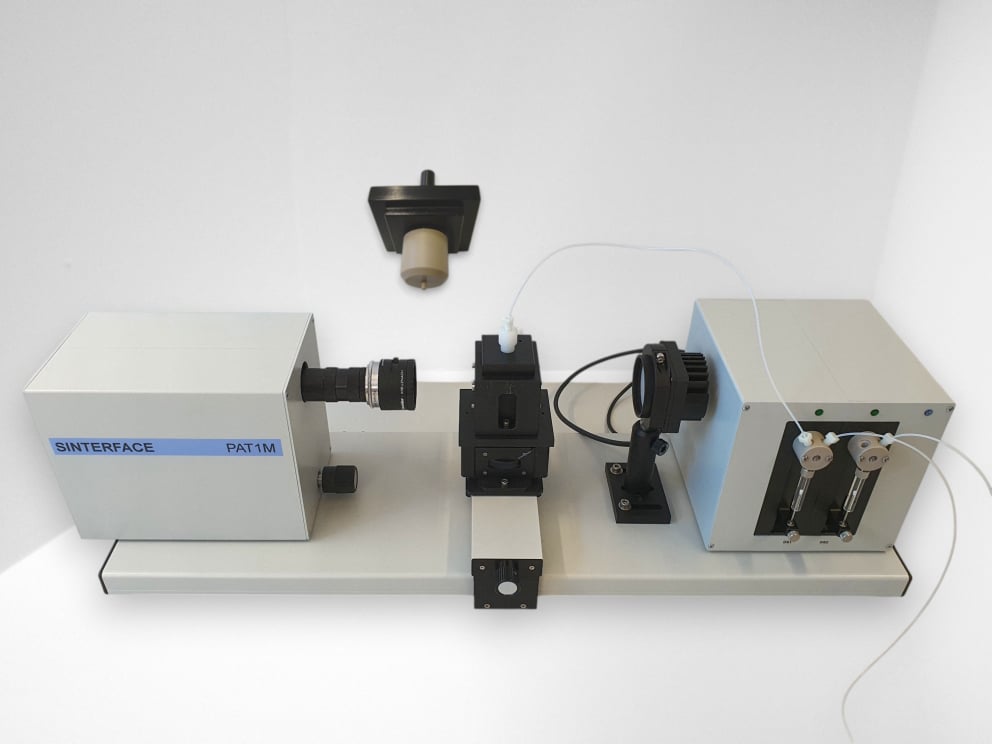

CcS: Coaxial capillary System
Coaxial capillary system CSS for use of coaxial capillary – drop bulk exchange.
PAT1M-CA: Contact angle module
The contact angle is the angle formed by a liquid at the three phase contact line where a liquid, gas and solid intersect. The shape of the drop is controlled by the three forces of interfacial tension shown in the figure. The contact angle is a quantitative measure of the wetting of a surface by a liquid. It can as well be used as a control measure in surface treatment and cleanliness.
Technical Specifications →

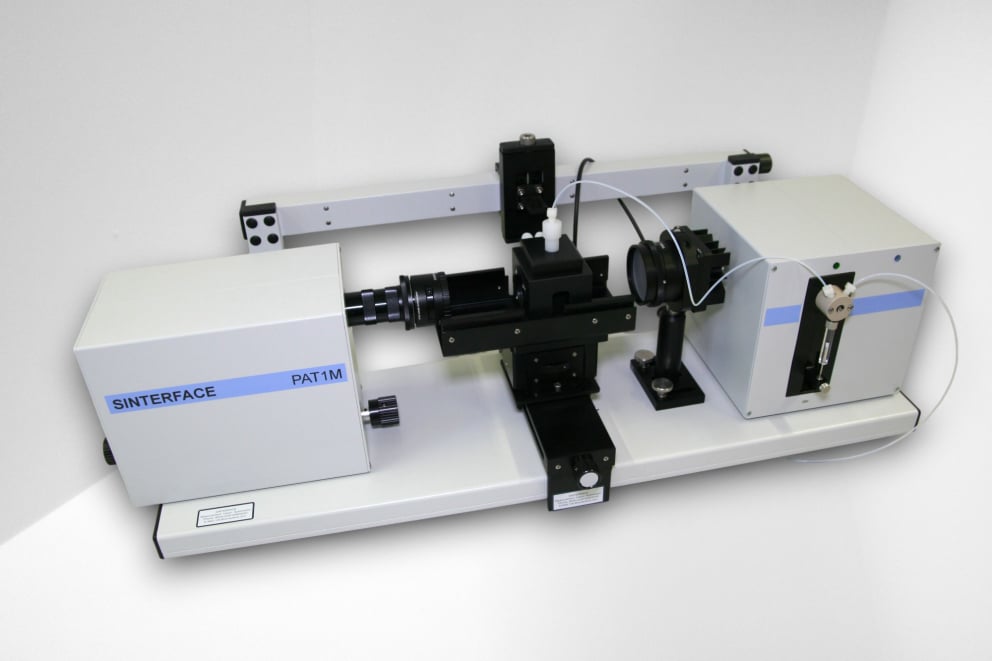

SOA: Second optical axes
Adjustable measuring cell Type 2X (low temperature range 10 to 80 °C) with two optical axes and holders both for straight capillaries and curved capillary and integrated second optical axes with additional high speed video camera and light source for simultanieous observation during standard experiments.
Contact Us for more Information →

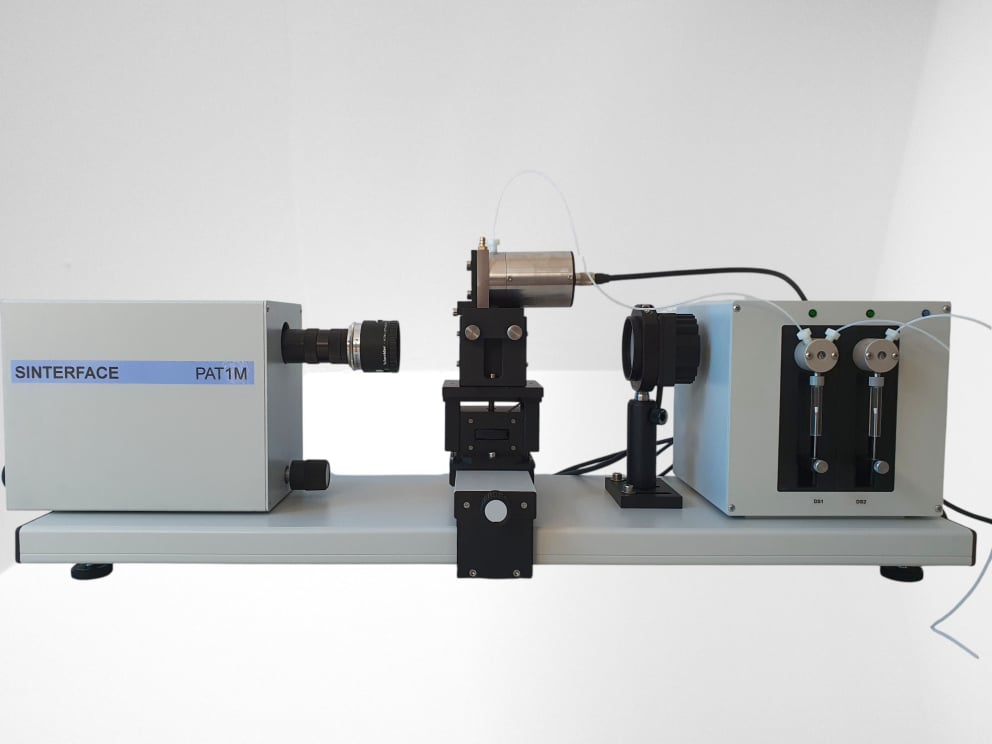

DPA-1M: Capillary Pressure
Specialized expansion for maximum sensitivity in micro-liter volumes, ideal for studying adsorption kinetics.
Contact Us for more Information →
ODBA-1M: High Frequency Rheology
Extends the frequency range for interfacial rheology up to 100/200 Hz for dynamic visco-elastic analysis.
Technical Specifications →

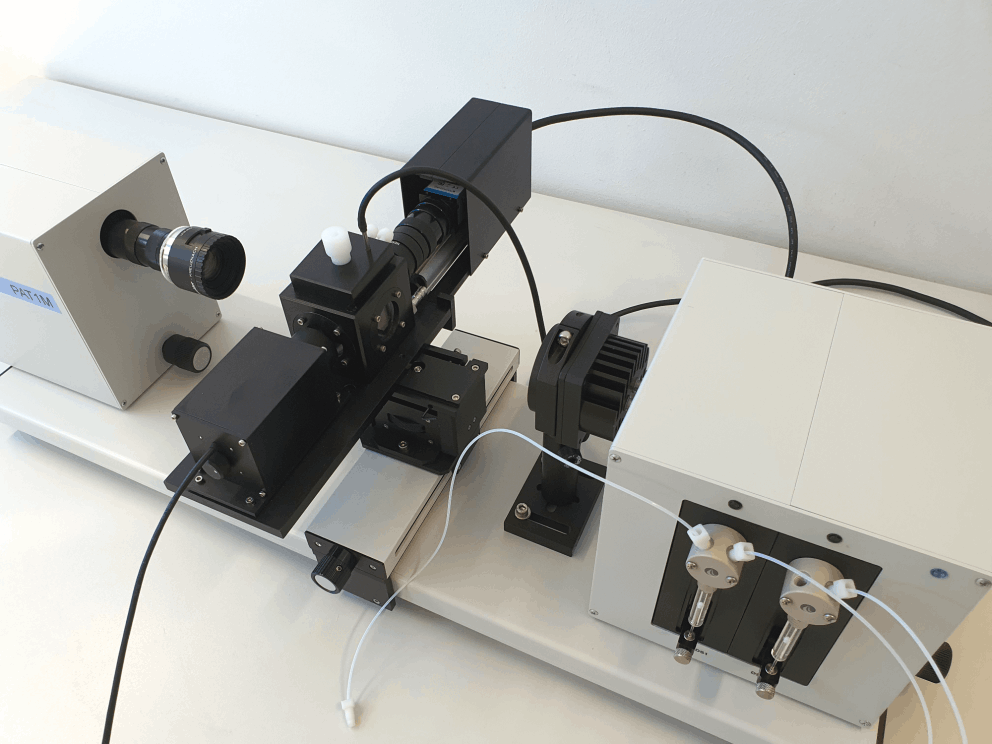

DBMM-1M: Drop-Bubble Manipulator
Direct interaction studies between drops and bubbles to analyze emulsion stability and thin film drainage.
Technical Specifications →

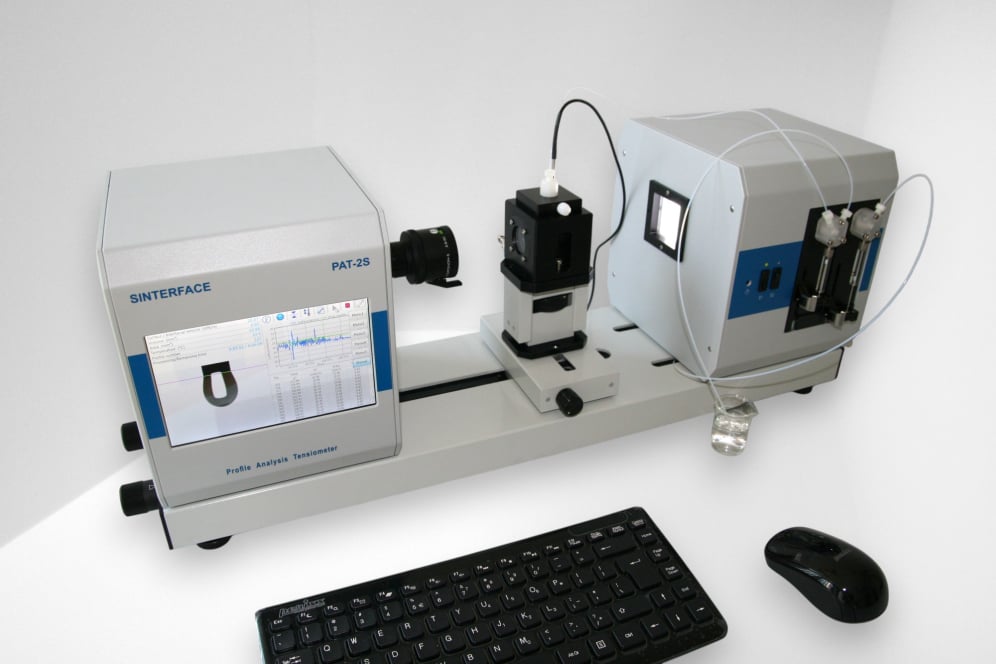

PAT-2S: stand alone tensiometer
High-end stand-alone full automatic profile analysis instrument with remote control via LAN, WLAN and a modern user friendly interface.
Technical Specifications →

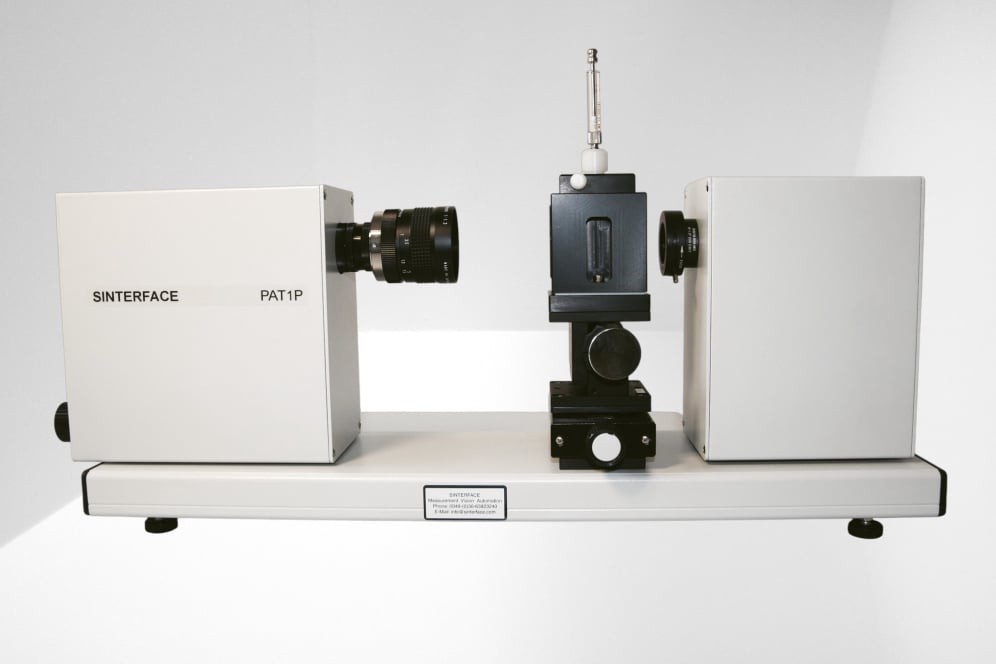

PAT-1P: PORTABLE Tensiometer
A very compact profile analysis tensiometer to measure surface and interfacial tension of liquids.
Technical Specifications →

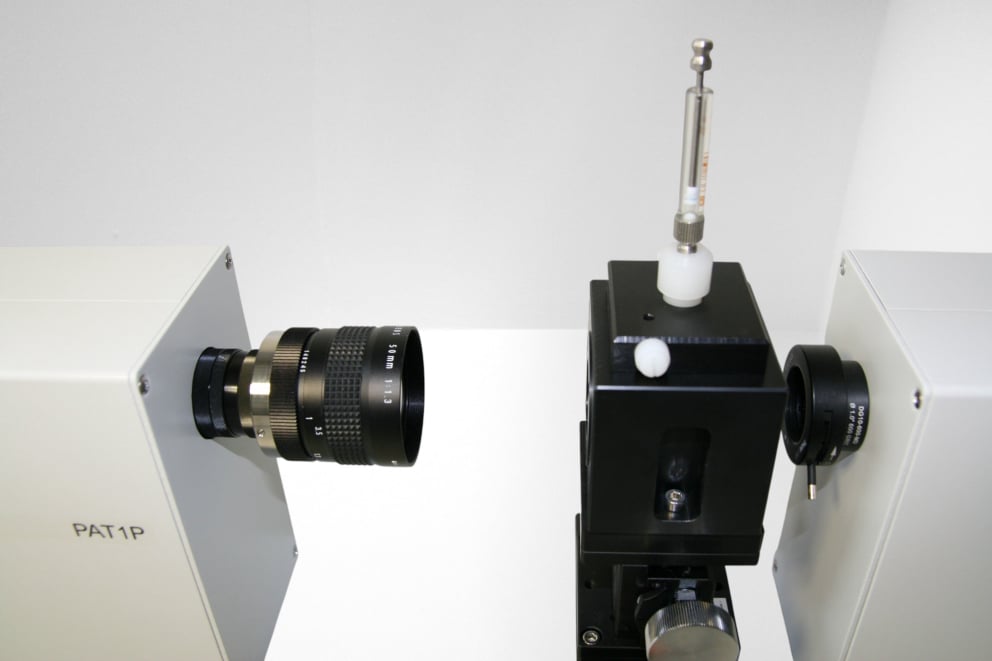

PAT1P-CA: Contact Angle Module
Enables precise wetting analysis and contact angle measurements for the portable PAT-1P Tensiometer.
Technical Specifications →
