Profile Analysis tensiometry

PAT-2S Tensiometer

High end stand-alone full automatic profile analysis instrument with remote control via LAN, WLAN and a modern user friendly interface.

📸

Visuals in Progress

As this site is currently in Beta, we are continuously adding more product photos and detailed views. Thank you for your patience.

Next-Generation Tensiometry

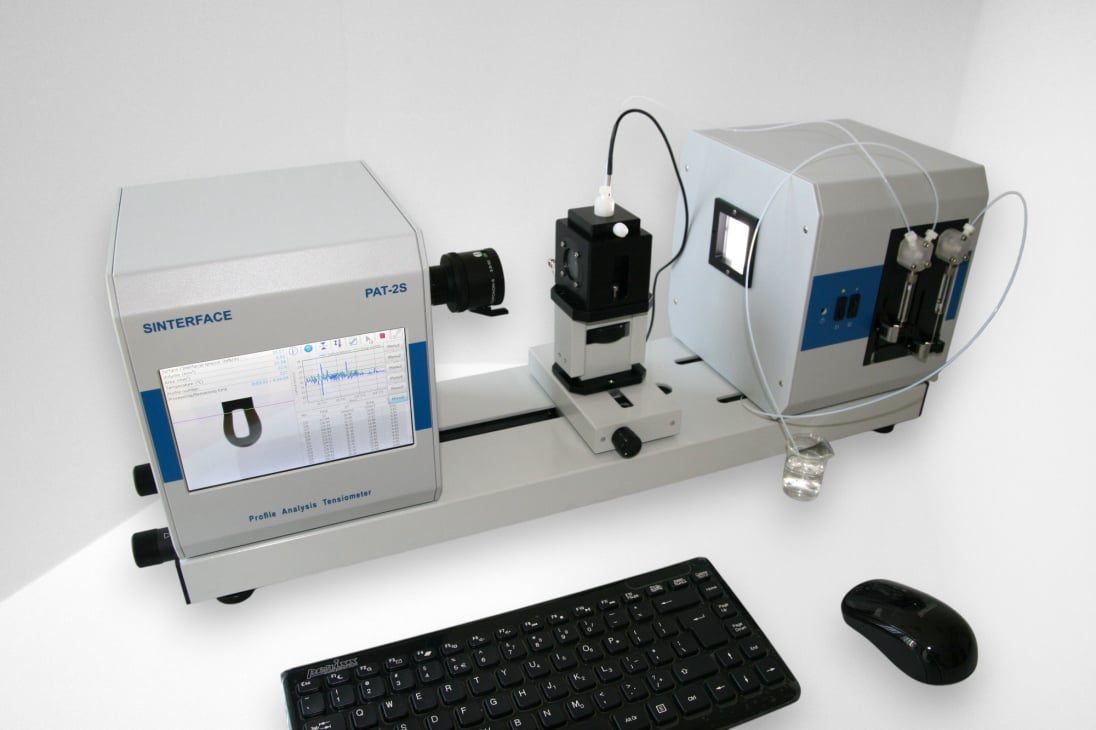

PAT-2S Stand-Alone Tensiometer

The PAT2S is the latest version of PAT instruments and continues the great tradition of PAT1M. The most striking improvements in the newly designed stand-alone tensiometer PAT2S are the higher resolution of the video camera and the more flexible mechanical construction which allows to better adapt the instrument to the requirements of the user. In addition to the higher resolution also high speed cameras with high frame rates is embedded in the corresponding software.
Technical Specifications Technical Inquiry
Overview Information Technical Specifications Accessories & Spare parts Applications Inquiry
Key Advantages
■

High end stand-alone full automatic profile analysis instrument

■

Modern method to measure surface and interfacial tension of liquids

■

Interfacial Rheology Studies are available in the basic version

■

Modular extensions for different applications

■

Remote control via LAN, WLAN

■

Smartphone application for remoute monitoring

■

Modern user friendly interface and connectivity simplifies operation of instrument.

■

Principle is based on the analysis of the shape of pendent and sessile drops or buoyant and captive bubbles.

■

Well suited to determine the contact angle of liquids on solid surface.

Hardware

Instrumental parts

  • • Basic platform on which all parts are safely mounted
  • • Manual x/y/z-axis
  • • Graphic color TFT touch display 7’’ resolution 800 x 480 pixel
  • • Automatic computer-controlled precise dosing system
  • • Mechanically adjustable temperature controlled measuring cell (temperature range 10 to 100 °C)
  • • Industrial IEEE1394A-FireWire CMOS-camera with fixed objectives
    • LED lighting with continuously adjustable intensity
    Features
Features

Measurement Features

  • • Surface and interfacial tension of liquids
  • • Static and dynamic contact angle according to the sessile drop method
  • • Determinanion of surface free energy
  • • Surface rheological studies to measure the dilational elasticity and viscosity
  • • Capillary pressure measurements for iso-dense liquid-liquid systems
  • • Surface rheological studies at higher frequency
  • • Direct drop-drop, bubble-bubble and drop-bubble interactions
  • • Fluid dynamic experiments with optional set-up
Software

Main features of the software

  • • on-line interfacial tension/contact angle calculation
  • • very accurate control loop to keep constant either volume or area of drop or bubble
  • • smooth oscillations with dosing system
  • • harmonic and transient relaxation experiments
  • • calculation of the dilation rheological parameters from relaxation measurements via Fourier analysis
  • • calculation of the surface free energy of solids (different methods)
Technical Data

PAT-2S Specifications

Category Details
Range of Surface and Interfacial tension 1 to 2000 mN/m (resolution: ± 0.01 mN/m)
Range of contact angle measurement 1° to 179° (accuracy ±0.2°)
Operation Modes Stand-alone (touch display, mouse, keyboard) or via PC, Smartphone (Android)
Measuring options surface / interfacial tension, dilational elasticity and viscosity, contact angle, surface free energy
drop/bubble oscillations 0.001 to 0.5 Hz (basic version), up to 100 Hz (ODBA-1M module)
Dosing built-in automatic dosing system (optional second automatic dosing system)
Additional measurement modules Coming soon!
Optics & Camera Optics: manual fixed or zoom objectives
Camera: Industrial 3.1 MP CMOS, 2048 x 1536 px, USB 3.0
Frame rate (Standard) 60 images/s @ 2048x1536 | 370 images/s @ 640x480 | 740 images/s @ 640x240 | 1500 images/s @ 640x120
Interface & Connectivity 1 GB Ethernet | 3 x USB 2.0 | WiFi (option) | DisplayPort (DVI/HDMI) res. up to 1920x1200
Physical Data Size: 700 x 200 x 270 mm | Weight: 3 kg | Power: external 100…240 AC to 24 VDC, 40 W
Software & OS embedded software | free update (1 year) | Windows 7, 8, 8.1, 10, 11 supported
Extra accessories adjustable temperature controlled cell, additional dosing systems (up to 4), coaxial double capillary, liquid exchange cell, piezo control unit, special contact angle cell, high temperature cells

Available Accessories and Spare Parts for PAT-2S

Accessories  +
Syringes

AM 01001

Measuring cell Type 1 (standard)
Temperature controlled measuring cell (water bath not included) for surface/interfacial measurement, rheological measurements and basic contact angle studies.
Low temperature range 10 to 80 °C,
with holders for straight capillaries
NOTE: Without Optical Glasses

Request Info
Syringes

AM 01002

Measuring cell Type 2 (high temperature)
HT-1000M
Electrically heated measuring cell (incl. external microprocessor temperature controller).
High temperature range up to 1000°C,
For liquid/air measurement

Request Info
Syringes

AM 01003

Holder for Cell Type 2

Request Info
Syringes

AM 01004

Capillary holder for AM 01001
For straight shaped capillaries

Request Info
Syringes

AM 01005

Capillary holder for AM 01001
For curved capillary

Request Info
Syringes

AM 01014

Adjusting set-up for Small cuvette

Request Info
Syringes

AM 01029

Light source for PAT-1M complete

Request Info
Syringes

AM 01054

LED Light source for PAT-1M
Plate 5x5 LEDs

Request Info
Syringes

AG 01030

Diffusing glass

Request Info
Syringes

AE 01031

Communication cable RS-232
9-pol. – 9-pol., 1.5 m

Request Info
Syringes

AE 01032

Power connection Cable EU

Request Info
Syringes

AE 01033

Power connection Cable USA

Request Info
Syringes

AE 01034

Power connection Cable GB

Request Info
Syringes

AE 01035

Diffusing glass

Request Info
Syringes

AG 01030

Power connection Cable CH

Request Info
Syringes

AE 01036

Power connection Cable I

Request Info
Syringes

AD 01037

Coaxial capillaries system
Consists of:
Coaxial capillaries (standard)
Automatic dosing system ADS-1M
Tubing
Software

Request Info
Syringes

AM 01038

Holder for Coaxial Capillary system

Request Info
Syringes

AM 01069

Coaxial capillary
OD 1 mm

Request Info
Syringes

AD 01070

USB 3.0 Cable 2m

Request Info
Syringes

AD 01071

Power Supply 24 VDC , 70 W, 110-240 AC

Request Info
Spare parts +
Syringes

AM 01006

Capillary for PAT1 straight shape, CPA 01
PTFE - stainless stell
OD 0.5 mm

Request Info
Syringes

AM 01007

Capillary for PAT1 straight shape, CPA 02
PTFE - stainless stell
OD 1.0 mm

Request Info
Syringes

AM 01008

Capillary for PAT1 straight shape, CPA 03
PTFE - stainless stell
OD 2.0 mm

Request Info
Syringes

AM 01009

Capillary for PAT1 straight shape, CPA 04
PTFE - stainless stell
OD 3.0 mm

Request Info
Syringes

AM 01010

Capillary for PAT1 curved shape, CPA S01
PTFE - stainless stell
OD 2.0 mm

Request Info
Syringes

AM 01011

Capillary for PAT1 curved shape, CPA S02
PTFE - stainless stell
OD 3.0 mm

Request Info
Syringes

AG 01012

Cuvette for Measuring cell Type 1, Big
Glass cuvette for measurement cell Type 1,
Size (LxWxH): 32x35x35mm

Request Info
Syringes

AG 01013

Cuvette for Measuring cell Type 1, Small
Glass cuvette for measurement cell Type 1,
Size (LxWxH): 32x35x35mm

Request Info
Syringes

AD 01016

Dosing system DS1
Automatically controlled dosing system.
Interface: USB

Request Info
Syringes

AD 01017

Valve for DS1

Request Info
Syringes

AM 01018

Tubing for AD 001016 1-side,
PTFE tube OD 1.8mm, 40 cm

Request Info
Syringes

AM 01019

Tubing for AD 001016 2-sides,
PTFE tube, OD 1.8, 40 cm

Request Info
Syringes

AM 01019

Tubing for AD 001016 2-sides,
PTFE tube, OD 1.8, 40 cm

Request Info
Syringes

AM 01020

Syringe
Precision syringe for DS1
Volume: 25 mkl

Request Info
Syringes

AM 01021

Syringe
Precision syringe for DS1
Volume: 50 mkl

Request Info
Syringes

AM 01022

Syringe
Precision syringe for DS1
Volume: 100 mkl

Request Info
Syringes

AM 01023

Syringe
Precision syringe for DS1
Volume: 250 mkl

Request Info
Syringes

AM 01024

Syringe
Precision syringe for DS1
Volume: 1000 mkl

Request Info
Syringes

AM 01025

Calibration kit
Special magnetic holder,
Stainless steel calibration sphere D 3.000 mm

Request Info
Syringes

AM 01026

Calibration sphere D 2
Diameter 2.000 mm

Request Info
Syringes

AM 01027

Calibration sphere D 3
Diameter 3.000 mm

Request Info
Syringes

AM 01028

Calibration sphere D 5
Diameter 5.000 mm

Request Info
Syringes

AM 01072

Capillary for PLF-2M
Contact Us for technical information!

Request Info
Syringes

AG 01043

Capillary for ODBA-1M, COD-01
ID= 0,3 mm, OD= 0.8 mm

Request Info
Syringes

AG 01044

Capillary for DPA-1M, CDP-01
ID= 0,3 mm, AD= 0,8mm

Request Info
Syringes

AG 01045

Capillary for DBMM-1M (curved shape), CMM-01
Contact Us for technical information!

Request Info

Applications & Use Cases

Case 2

Composite Bonding

Ensuring reliable adhesion between carbon fibers and polymer matrices in lightweight construction.

Case 3

Enhanced Oil Recovery (EOR)

Analyzing ultra-low interfacial tension for tertiary oil production optimization.

Case 3

Oil-Water Separation

Optimizing demulsifiers for efficient separation in refineries and wastewater plants.

Case 3

Fracking & Drilling Fluids

Controlling the flow properties and surface tension of fluids in extreme environments.

Case 3

Lubricant Additives

Testing the interfacial efficiency of anti-friction additives in modern engine oils.

Case 3

Coolant Efficiency

Reducing surface tension in cooling systems for improved heat transfer in EVs.

Case 3

MEDICINE

Monitoring of human and animal biological fluids

Case 3

MEDICINE

Direct determination of biological indicators corresponding to a specific disease

Case 3

MEDICINE

Determination of values of indicators that quantitatively characterize the features of the integral chemical composition (ICC) of fluids

Case 3

MEDICINE

Study of biological fluids of humans and animals in normal and pathological conditions

Case 3

PHARMA

Express analysis, standardization and quality control of liquid pharmacological preparations
