Contact angle Analysis

CA-1P

The CA-1P provides precise contact angle measurements to quantify surface wettability and ensure rigorous standards for surface treatment and cleanliness.

CONTACT ANGLE ANALYSIS

CA-1P Contact Angle Module for PAT1P

The CA-1P determines the contact angle formed at the intersection of liquid, gas, and solid phases to provide a quantitative measure of surface wettability. By analyzing the drop shape—governed by the three forces of interfacial tension—the instrument delivers precise data on surface characteristics. This makes it an essential tool for evaluating the effectiveness of surface treatments and ensuring strict cleanliness standards in industrial and laboratory environments.

Explore Features Technical Inquiry
PAT-1M Main

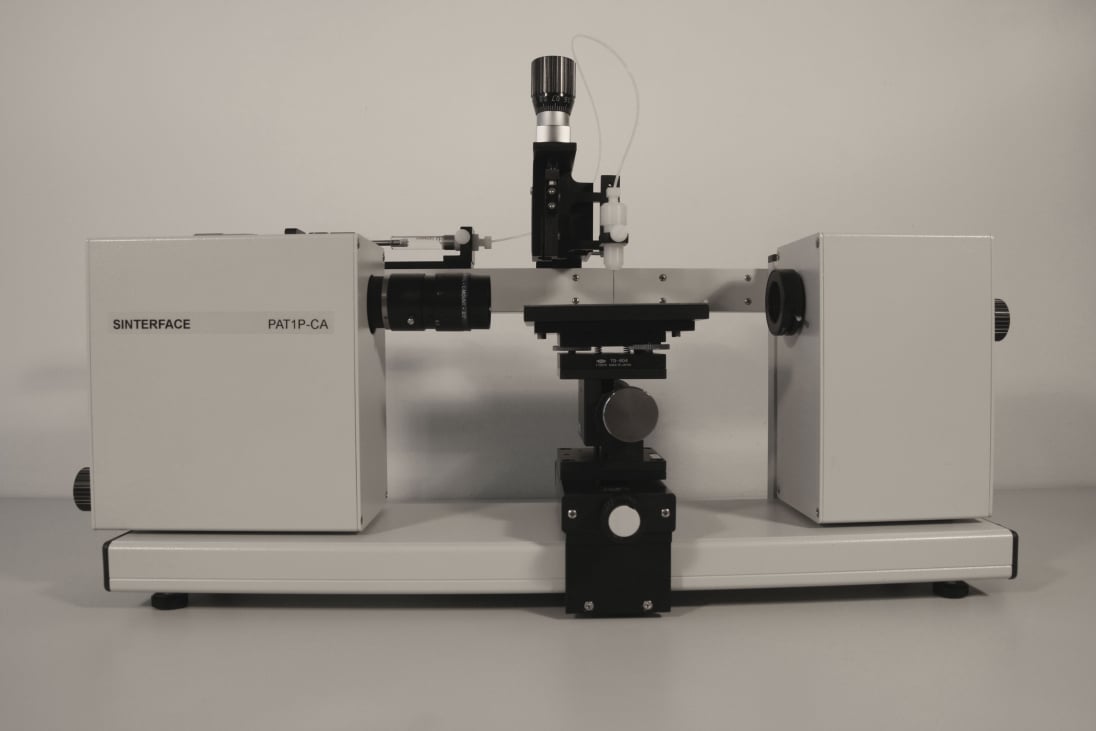

PAT-1M View 2

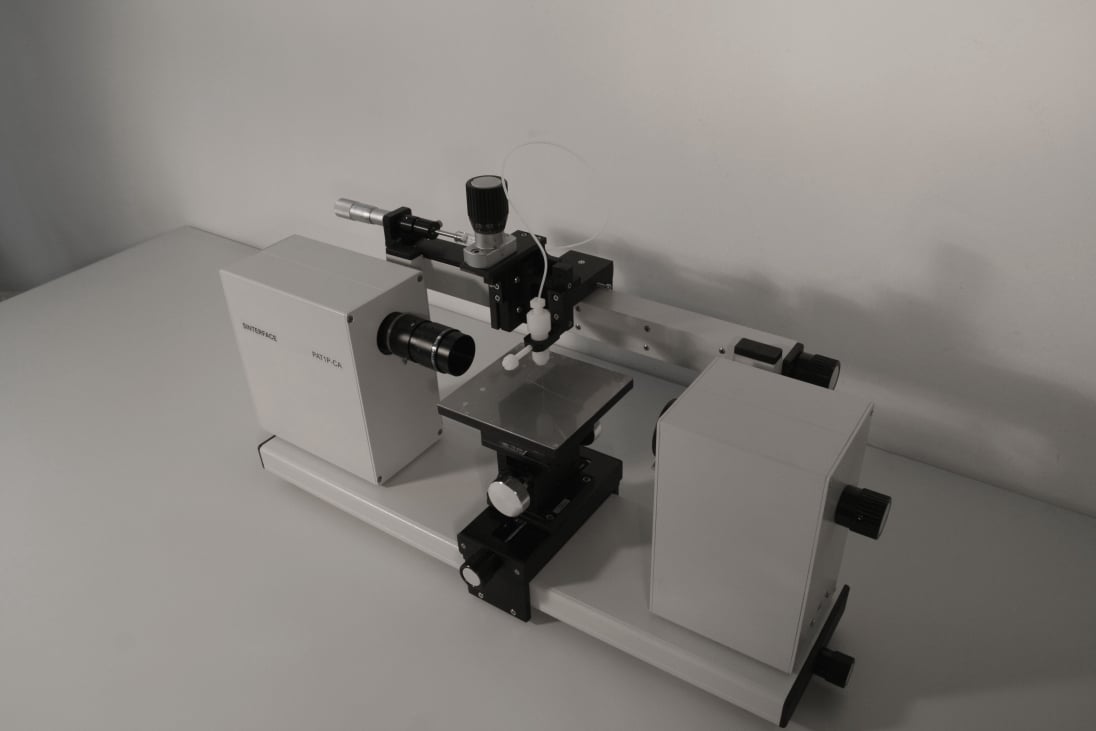

PAT-1M View 3
Overview Information Technical Specifications Software Accessories & Spare parts Compatible Modules Applications Inquiry
Key advantages
■

Contact Angle Module CA-1P: Equipped with a high-resolution industrial camera and optimized optics for the precise capture and analysis of sessile drop profiles.

■

Manual Liquid Dispensing: A precision manual dosing system for the controlled deposition of liquids onto various solid substrates.

■

Measurement Stage: A manually adjustable x/y/z-axis table that ensures exact sample positioning and perfect alignment for accurate contact angle determination.

Hardware

Instrumental parts

  • • Profile Analysis Tensiometer PAT-1P
  • • manual liquid dispensing
  • • measurement table
  • • manually adjustable x/y/z-axis table
  • • high-resolution industrial camera and optimized optics
    • special Contact Angle platform
Features

Measurement Features

  • • quantitative measurement of the wetting of a surface by a liquid.
  • • can as well be used as a control measure in surface treatment and cleanliness.
  • • Contact angle according to the sessile drop method (with module)
Software

Main features of the software

  • • on-line interfacial tension/contact angle calculation
  • • calculation of the dilation rheological parameters from relaxation measurements via Fourier analysis
  • • transient relaxation experiments
Technical Data

PAT-1P CA Specifications

Category Details
Range of contact angle measurement 5° to 175° (accuracy ±0.3°)
Range of surface and interfacial tension 10 to 2000 mN/m
Dosing manual drop/bubble formation
Measuring options manual drop volume control; automatic drop volume/area control (optional);
pendent drop, buoyant bubble, sessile drop; surface / interfacial tension;
dilational elasticity (optional); contact angle; surface free energy;
drop/bubble oscillations 0.001 to 1 Hz (optional)
Optics & Camera Optics: manual fixed objectives
Camera: Industrial CMOS-camera, 1280 x 960 px, USB, optical distortion < 0.05 %
Frame rate up to 25 images/s
Hardware Setup Axes: manual x/y/z-axis | Illumination: LED, manually controlled intensity | Interface: USB
Physical Data Size: 400 x 200 x 200 mm (standard version) | Weight: 3 kg | Power: Powered by USB bus
Software & OS Windows 7, 8, 8.1, 10 or 11 | free update over 1 year after purchase
Extra accessories additional capillaries on request, automatic dosing module

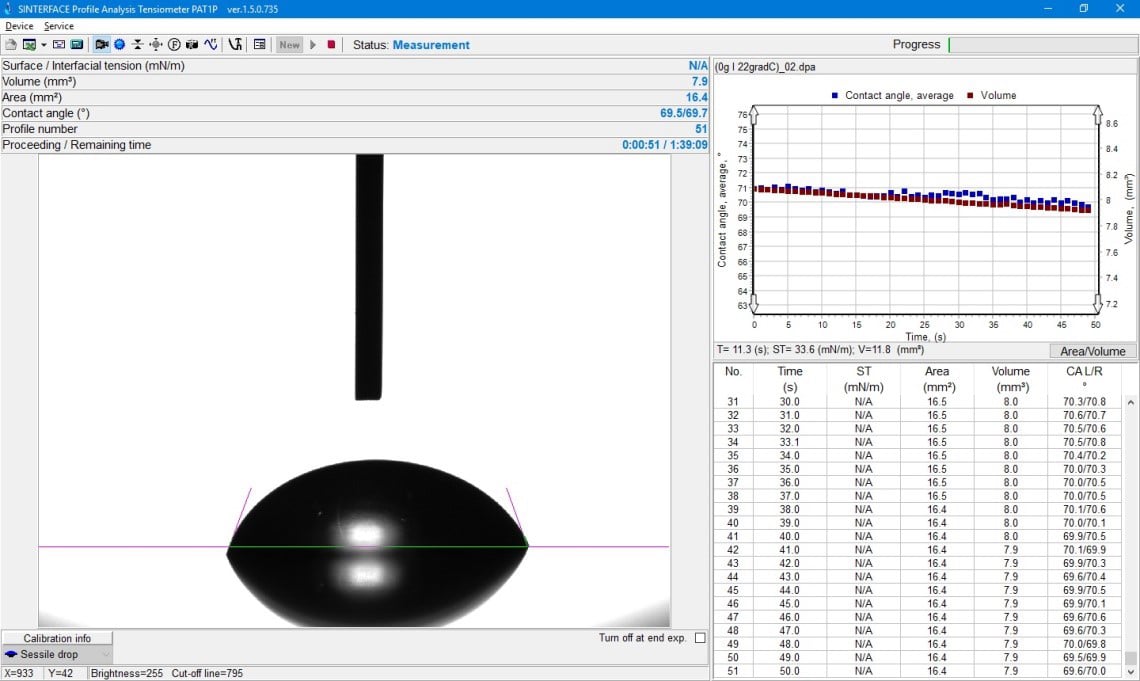

Sinterface Software
Intelligent Analysis

CA-1P Software

Our high-performance software provides real-time fast contact angle analysis and precise data acquisition. Designed for accuracy and intuitive workflow, it allows seamless control of all measurement parameters.

✓ transient relaxation experiments
✓ calculation of the dilation rheological parameters from relaxation measurements via Fourier analysis
✓ Contact angle measurements are available in the basic version
✓ transient relaxation experiments
Contact Us for more information

Available Accessories and Spare Parts for CA-1P

Accessories  +
Syringes

AM 01001

Measuring cell Type 1 (standard)
Temperature controlled measuring cell (water bath not included) for surface/interfacial measurement, rheological measurements and basic contact angle studies.
Low temperature range 10 to 80 °C,
with holders for straight capillaries

Request Info
Syringes

AM 01004

Capillary holder for AM 01001
For straight shaped capillaries

Request Info
Syringes

AM 01005

Capillary holder for AM 01001
For curved capillary

Request Info
Syringes

AE 01046

Communication cable USB, 1.5 m

Request Info
Spare parts +
Syringes

AM 01006

Capillary for PAT-1P straight shape, CPA 01
PTFE - stainless stell
OD 0.5 mm

Request Info
Syringes

AM 01007

Capillary for PAT-1P straight shape, CPA 02
PTFE - stainless stell
OD 1.5 mm

Request Info
Syringes

AM 01008

Capillary for PAT-1P straight shape, CPA 03
PTFE - stainless stell
OD 2.0 mm

Request Info
Syringes

AM 01009

Capillary for PAT-1P straight shape, CPA 04
PTFE - stainless stell
OD 3.0 mm

Request Info
Syringes

AM 01010

Capillary for PAT-1P curved shape, CPA S01
PTFE - stainless stell
OD 2.0 mm

Request Info
Syringes

AM 01011

Capillary for PAT-1P curved shape, CPA S02
PTFE - stainless stell
OD 3.0 mm

Request Info
Syringes

AG 01012

Cuvette for Measuring cell Type 1, Big
Glass cuvette for measurement cell Type 1,
Size (LxWxH): 32x35x35mm

Request Info
Syringes

AG 01013

Cuvette for Measuring cell Type 1, Small
Glass cuvette for measurement cell Type 1,
Size (LxWxH): 32x35x35mm

Request Info
Syringes

AD 01014

Adjusting set-up for Small cuvette

Request Info
Syringes

AD 01020

Syringe
Precision syringe for DS1
Volume: 25 mkl

Request Info
Syringes

AM 01021

Syringe
Precision syringe for DS1
Volume: 50 mkl

Request Info
Syringes

AM 01022

Syringe
Precision syringe for DS1
Volume: 100 mkl

Request Info
Syringes

AM 01023

Syringe
Precision syringe for DS1
Volume: 250 mkl

Request Info
Syringes

AM 01024

Syringe
Precision syringe for DS1
Volume: 1000 mkl

Request Info
Syringes

AM 01025

Calibration kit
Special magnetic holder,
Stainless steel calibration sphere D 3.000 mm

Request Info
Syringes

AM 01026

Calibration sphere D 2
Diameter 2.000 mm

Request Info
Syringes

AM 01027

Calibration sphere D 3
Diameter 3.000 mm

Request Info
Syringes

AM 01028

Calibration sphere D 5
Diameter 5.000 mm

Request Info
available Modules
ADM Module

Automatic Dosing Module

Contact us for more information →

Applications & Use Cases

Case 1

Wetting of Lacquers

Avoiding cratering and ensuring smooth finishes on metal and plastic surfaces.

Case 2

Paper & Packaging Sizing

Controlling the ink penetration depth and liquid absorption of coated paper surfaces.

Case 3

Anti-Graffiti & Easy-Clean

Evaluating the surface energy of repellent coatings for permanent protection.

Case 3

Wafer Cleaning QC

Surface energy measurement to detect ultra-thin organic residues on silicon wafers.

Case 3

Solder Paste Wetting

Investigation of the wetting behavior of solder on circuit board contacts.

Case 3

Potting & Encapsulation

Optimizing the flow and wetting behavior of resins for electronic component protection.

Case 3

Structural Bonding

Surface energy QC of composite materials for high-strength aerospace adhesives.

Case 3

Ophthalmic Wetting

Optimizing eye drop formulations for better spreading and longer residence time on the cornea.

Case 3

Pesticide Adhesion

Ensuring agrochemicals stick to hydrophobic plant leaves without runoff.

Case 3

Dust Suppression

Developing wetting agents to bind dust particles in open-pit mining.
