DYNAMIC SURFACE TENSION ANALYSIS

BPA-2P Tensiometer

Built on modern hardware and software architecture, this next-generation instrument delivers enhanced usability, improved measurement performance, and significantly increased reliability through its compact, robust mechanical design.

📸

Visuals in Progress

As this site is currently in Beta, we are continuously adding more product photos and detailed views. Thank you for your patience.

High-End Tensiometry

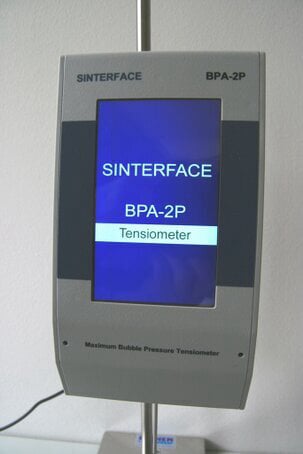

BPA2P Maximum Bubble Pressure Tensiometer

The latest generation of the BPA-2P is based on modern hardware and software architecture, which significantly expands the instrument’s usability and measurement performance. The improved, compact mechanical design ensures high reliability and long-term stability during operation. For seamless integration into modern workflows, the device can be connected directly to local networks with internet access, allowing for automatic software updates. Additionally, the BPA-2P features a high-resolution color touch display and an integrated battery, enabling its use as a fully mobile, stand-alone device for flexible on-site applications.

Explore Features Technical Inquiry
PAT-1M Main
PAT-1M Main
PAT-1M Main
Overview Information Technical Specifications Software Accessories & Spare parts Applications Inquiry
Key Advantages
■

New developments based on modern hardware and software design expands the instrument’s usability and measurement performances.

■

New improved compact mechanics increases significantly the reliability and stability of the instrument.

■

instrument can be directly integrated into local network environment with internet access and automatic software-updates

■

can be used as a stand-alone device with built-in battery

■

new modern design with accurate high-resolution color touch display

Hardware

Instrumental parts

  • • modern high quality electronic and mechanic components.
  • • user interface provided touch screen functionalities and optional possibilities to use external mouse/keyboard
  • • connected with the instrument via USB port.
  • • built-in RTC.
  • • LED lighting with continuously adjustable intensity
Features

Measurement Features

  • • direct and precise measurement of dead time and life time
  • • surface tension as function of physical time and life time
  • • available time interval of 3 orders of magnitude (0.010 s to 10 s)
  • • optionally extended time interval by using a special capillary (0.06 to 30 s)
  • • precise measurement of correct dynamic surface tensions
  • • direct determination of the hydrostatic pressure via automatic capillary immersion
  • • correction of hydrodynamic and viscosity effects of a measurement liquid
  • • continuously temperature monitoring of the sample
Software

Main features of the software

  • • based on a built-in modern OS Embedded Linux and operates as stand-alone instrument.
  • • contains built-in FTP and VNC servers for sharing the measurement data and remote control over Ethernet network.
  • • access to BPA-2P via any external PC/Notebook.
  • • All instrument’s functions are supported without external PC connections.
  • • As user interface a touch screen provides functionalities and optional possibilities to use external mouse/keyboard connected with the instrument via USB port.
  • •  USB 2.0 interface and built-in SD-slot allows storing the measurement data on a USB stick or SD card.
  • •  Ethernet interface allows connection of the instrument directly to a local network.
  • •   instrument control from a PC via local net or internet is possible.
Technical Data

BPA-2P Specifications

Parameter Specification
Range of surface and interfacial tension 10 to 150 mN/m
Resolution 0.01 mN/m
Accuracy of surface tension measurement better than 0.5 %
Sampling Rate 250 us
Dynamic time range: Standard capillary 10 ms to 30000 ms
Display Graphic color TFT touch display 7’’
resolution 800 x 480 pixel
Minimum volume test liquid 1 ml
Measurement temperature range 0 – 100°C
Experimental time:
Standard mode (M1) / Fast Mode (M4)		 20-30 min / 4-6 min
Measurement mode - Standard
- Constant time
- Fast scan
- Increasing flow
Density estimation
Number of measurement point in one measurement:
All scan modes (M1, M3, M4 )
Constant mode (M2)          		 up to 180
not limited
Operation Modes Stand-alone (touch display, mouse, keyboard) or remoute via client software
Data storing on board FLASH 1 GB
USB memory stick, max. 32 GB
Operation Modes Stand-alone (touch display, mouse, keyboard) or remoute via client software
Connectivity Ethernet 100 Mb
2 x USB
WiFi (option)
Process control option              Custom
Firmware free update over 1 year after purchase, update via Internet
Environment Temperature 10 – 50°C
Size of device (L xW x H) 110x205x75mm
Weight 1 kg
Power requirement       Measurement unit 12 VDC
Power supply external 100 … 240 AC; to 12 VDC
Max. power consumption                    less than 15 W
Extra accessories capillaries of different diameters
thermostatic jacket

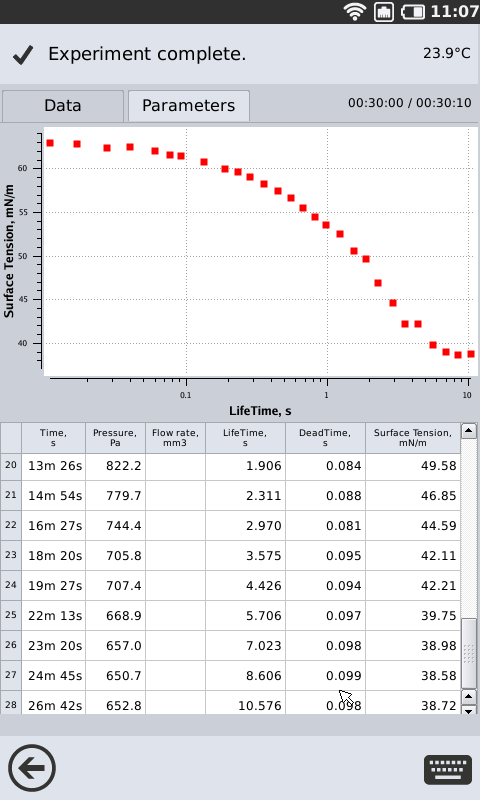

Sinterface Software
Intelligent Analysis

BPA-2P Software

Our high-performance software provides real-time fast bubble pressure analysis and precise data acquisition. Designed for accuracy and intuitive workflow, it allows seamless control of all measurement parameters.

✓ based on a built-in modern OS Embedded Linux and operates as stand-alone instrument.
✓ contains built-in FTP and VNC servers for sharing the measurement data and remote control over Ethernet network.
✓ As user interface a touch screen provides functionalities and optional possibilities to use external mouse/keyboard connected with the instrument via USB port.
✓ Different measurement functions
✓ USB 2.0 interface and built-in SD-slot allows storing the measurement data on a USB stick or SD card.
Contact Us for more information

Available Accessories and Spare Parts for BPA-2P

Accessories  +
Syringes

AE 01050

Power supply 12 VDC, 100-250 AC, 50-60 Hz

Request Info
Syringes

AE 01031

Communication cable USB
9-pol. – 9-pol., 1.5 m

Request Info
Syringes

AM 01051

Beaker standard

Request Info
Syringes

AM 01052

Tripod

Request Info
Syringes

AM 01053

Temperature controlled jacket

Request Info
Spare parts +
Syringes

AM 01047

Capillary CBP 01
Internal diameter 0.26 mm

Request Info
Syringes

AM 01048

Capillary CBP 02
Internal diameter 0.40 mm

Request Info

Applications & Use Cases

Case 1

Wastewater Monitoring

Detecting trace amounts of surfactant pollutants through dynamic surface tension analysis.

Case 2

Cleaning Bath Monitoring

Dynamic surface tension control for industrial degreasing and part cleaning.

Case 3

Mineral Flotation

Optimizing bubble attachment for efficient separation of valuable ores.

Case 3

Electroplating Baths

Controlling surface tension to prevent hydrogen pitting in metal finishing.

Case 2

Contact Us for more possible applications

If your specific use case is not listed here, please contact us for further information. Our team will be happy to discuss your enquiry with you

Take the Next Step

Interested in this model? Our team provides technical consulting and customized quotations for your specific research needs.
